It should be noted that all the parts exposed to depreciation are made of manganese steel alloy, and all the ball bearings are produced under license from genuine European companies like FAG or SKF. Cone crushers or hydrocones are used as primary, secondary, and even tertiary crushers in mineral crushing and processing lines and are able to grind minerals into quite small pieces.
Features:
- Hydraulic system for controlling the machine's mouthpiece;
- Hydraulic system to avoid machine damage;
- Simple repair and upkeep;
- High strength and power;

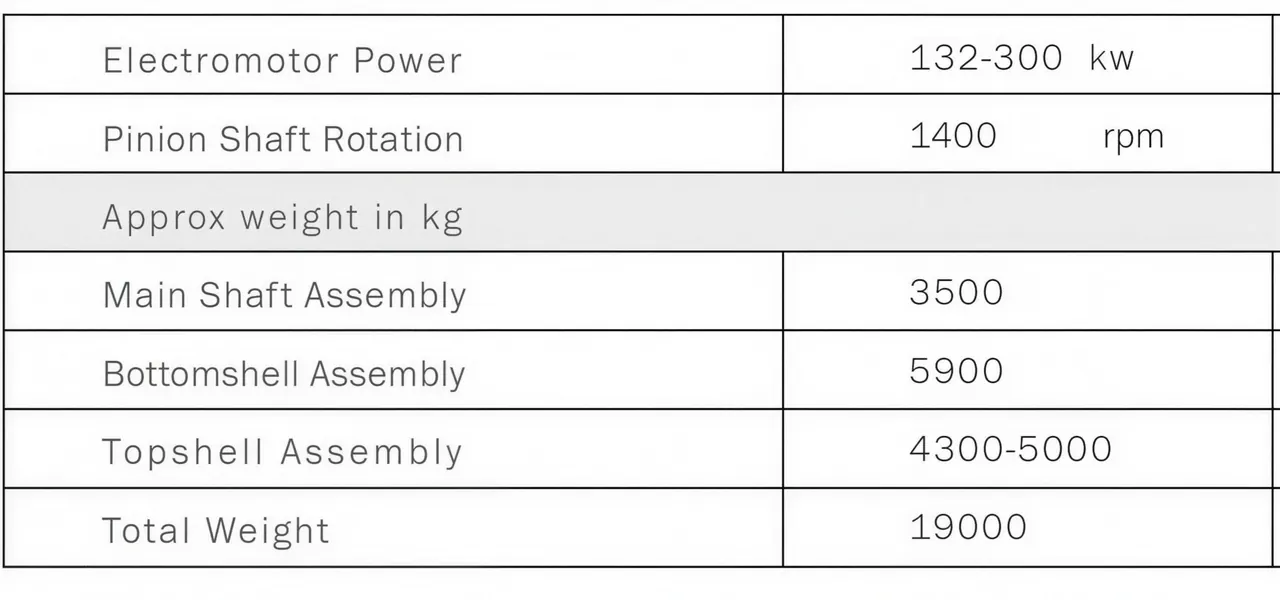

Hydrocone crusher specifications
| Electromotor power | 132-300 kW |
|---|---|
| Pinion shaft rotation | 1400 rpm |
| Main shaft assembly (approx. weight) | 3500 kg |
| Bottomshell assembly (approx. weight) | 5900 kg |
| Topshell assembly (approx. weight) | 4300-5000 kg |
| Total weight (approx.) | 19000 kg |
- Electromotor power
- 132-300 kW
- Pinion shaft rotation
- 1400 rpm
- Main shaft assembly (approx. weight)
- 3500 kg
- Bottomshell assembly (approx. weight)
- 5900 kg
- Topshell assembly (approx. weight)
- 4300-5000 kg
- Total weight (approx.)
- 19000 kg
Read from the specification picture above.
