Sistan Pipe Bending
With Screen indicating the degree of bend and taking orders from the operator.

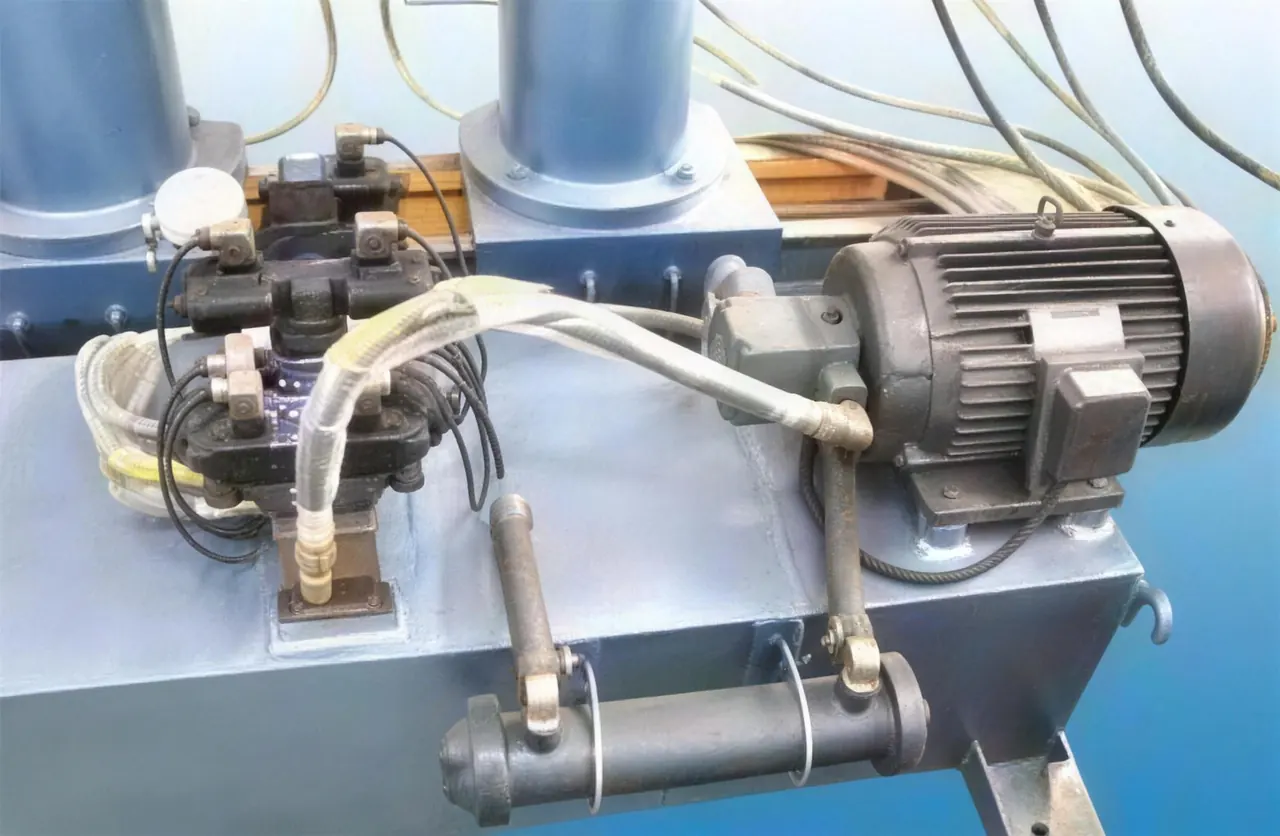

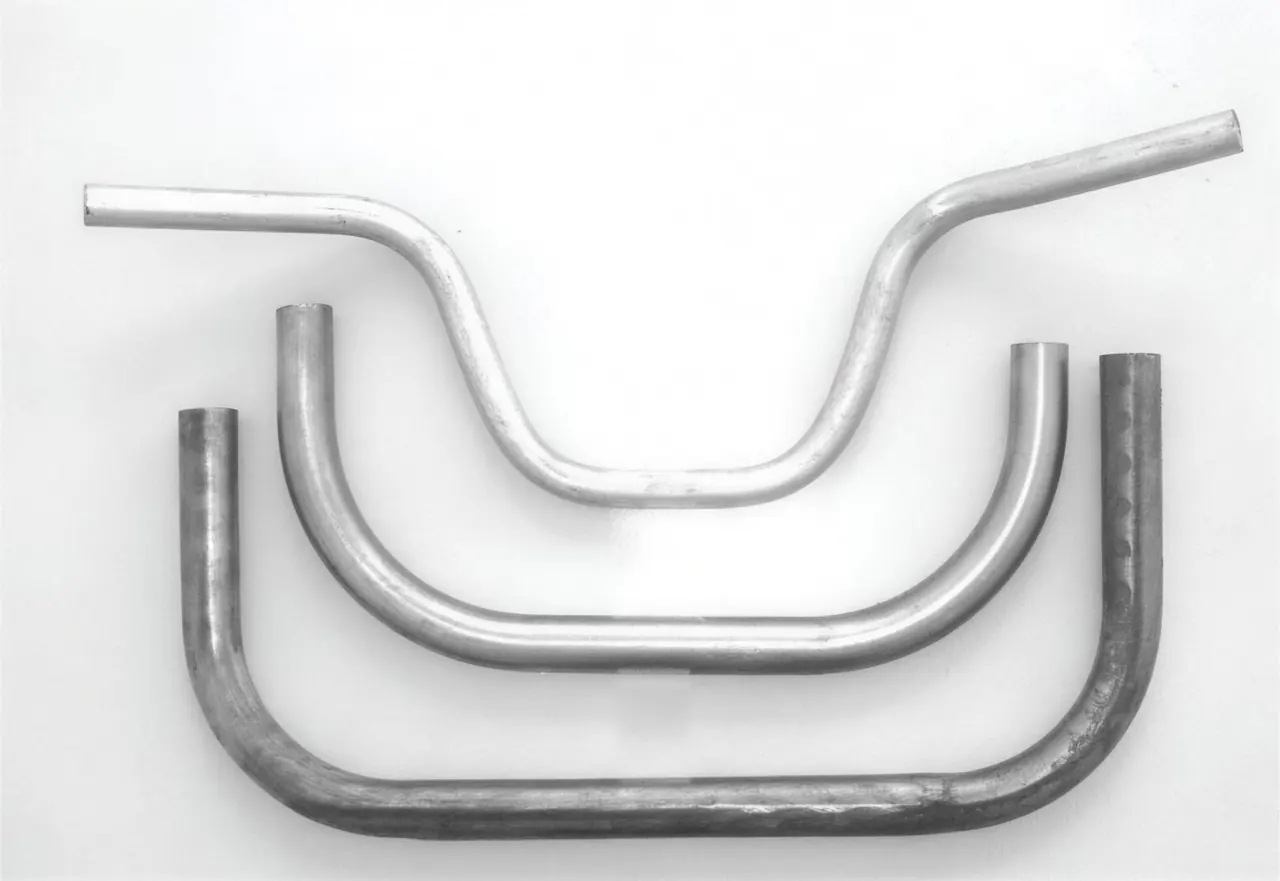

We handcraft the hydraulic pipe bending machine sistan with dies to make the bends in the pipes, this model is mandrel and makes sure the pipe will not get dent during the bending process
TFI 75NC - Mandrel Pipe Bending Machine
- Technical Data:
1 | Model | TFI75NC |
2 | Max bending capacity | Φ75X 4mm |
3 | Max bending radius | R400mm |
4 | Min bending radius | Depend on the pipe diameter |
5 | Max bending degree | 190° |
6 | Max effective distance of mandrel | 2800mm |
7 | Control system | NC Control |
8 | Max. elbow bend pipe | 16 Units |
9 | Max storage sections | 16 x 16 unit |
10 | Bending Speed | 20°/s |
11 | Main Motor Power | 7.5Kw |
11 | System hydraulic pressure | 12MPa |
12 | Hydraulic System Control | Electromagnetic Valve |
13 | Oil tank | 250 L |
14 | Machine Size | 4000x1000x1100mm |
15 | Machine Weight | 2000 Kg |
1
Model
TFI75NC
2
Max bending capacity
Φ75X 4mm
3
Max bending radius
R400mm
4
Min bending radius
Depend on the pipe diameter
5
Max bending degree
190°
6
Max effective distance of mandrel
2800mm
7
Control system
NC Control
8
Max. elbow bend pipe
16 Units
9
Max storage sections
16 x 16 unit
10
Bending Speed
20°/s
11
Main Motor Power
7.5Kw
11
System hydraulic pressure
12MPa
12
Hydraulic System Control
Electromagnetic Valve
13
Oil tank
250 L
14
Machine Size
4000x1000x1100mm
15
Machine Weight
2000 Kg

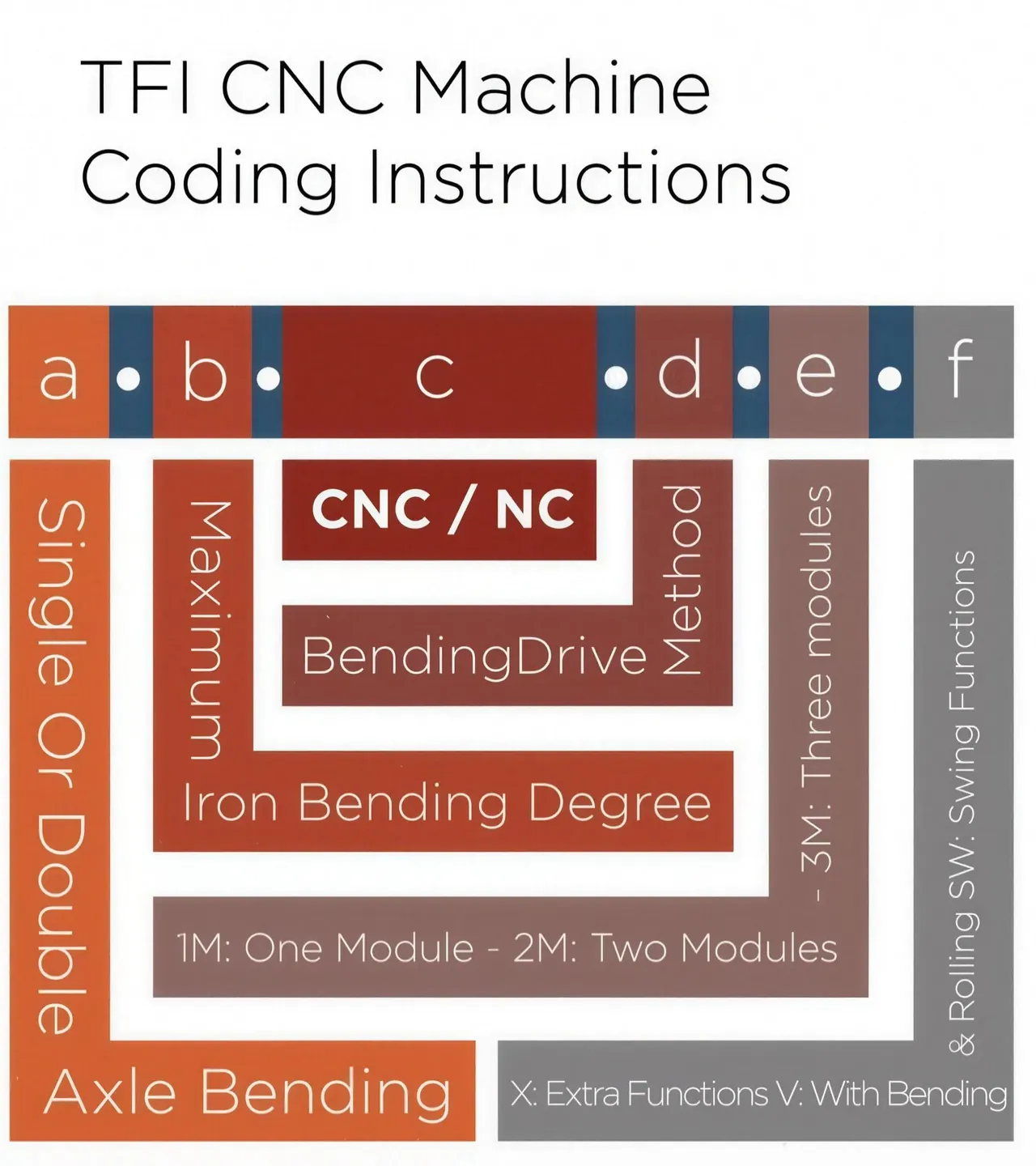

TFI Co. CNC Coding For Sistan Pipe Bender

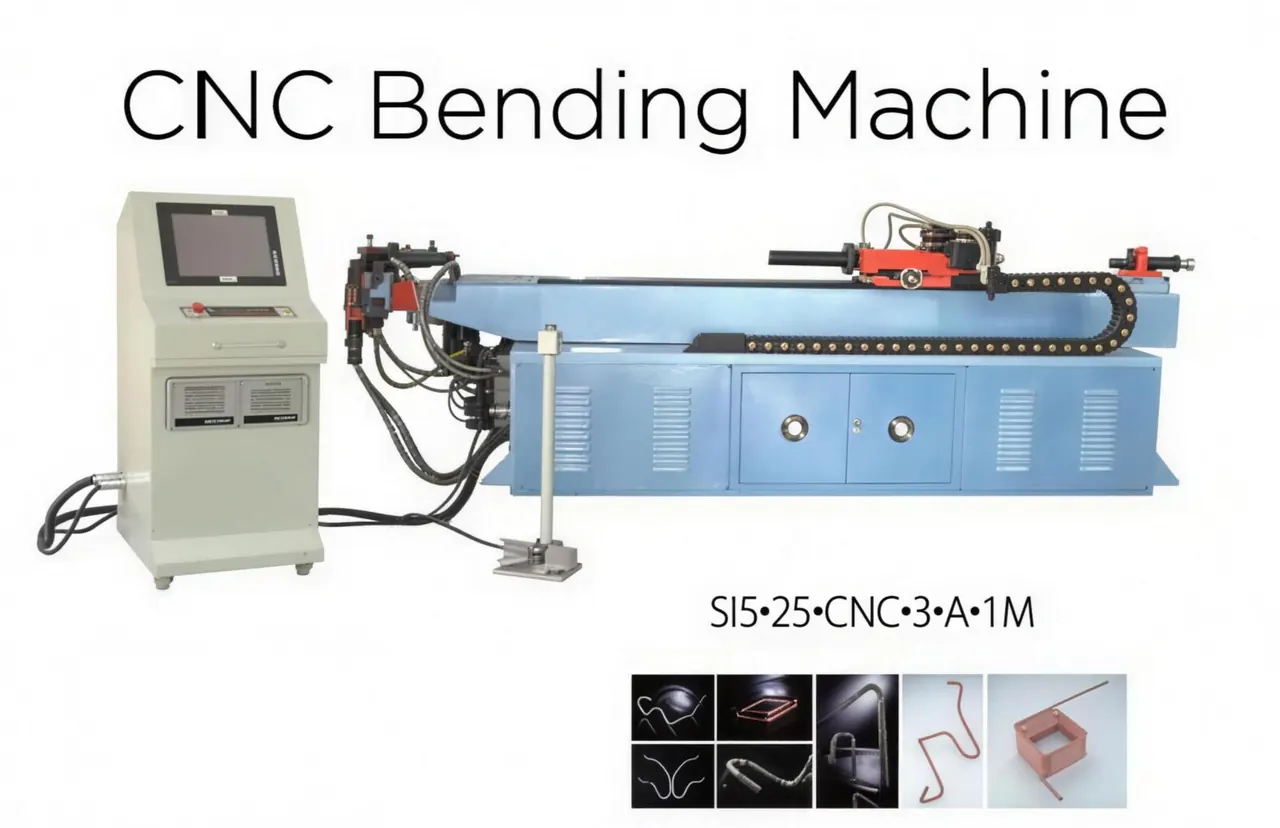

Available Models CNC Mandrel Pipe Bending machine
- SIS•18•NC•3•A•1M
- SIS•25•CNC•2•A•1M
- SIS•25•CNC•3•A•1M
- SIS•38•CNC•2•A•1M
- SIS•38•CNC•3•A•1M
- SIS•50•CNC•2•A•1M
- SIS•50•CNC•3•A•1M
- SIS•63•CNC•2•A•1M
- SIS•63•CNC•3•A•1M

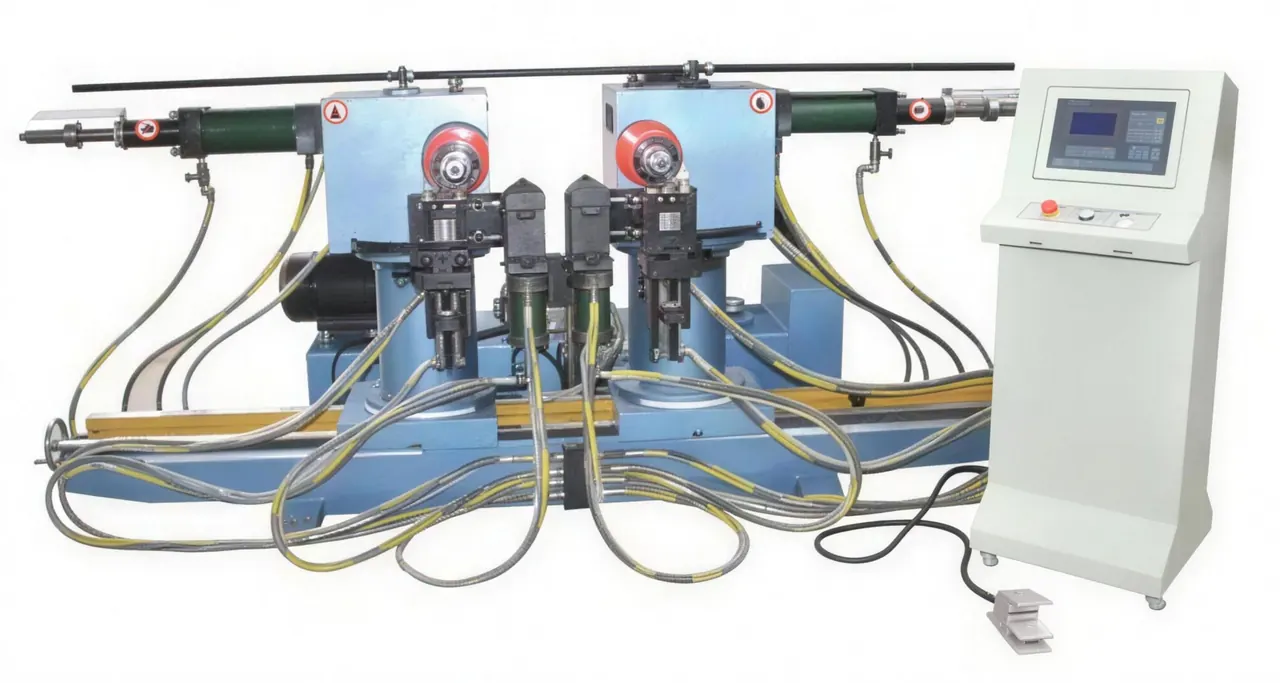

Double Head Hydraulic Pipe Bending Machine
Double Head Hydraulic Pipe Bending Machine
