(Qubit crusher)

The impact crushing machines are used in order to crush minerals.

The hammers of TFI Co.'s impact crushers are all constructed of PICI materials or manganese steel, and the anvils are all made of friction-resistant manganese alloy.

Features:

  • High crushing strength,
  • creation of versatile building materials ideal for asphalt and concrete,
  • simplicity of repair and maintenance,
  • adjustability of anvils and hammers,
  • accessibility to replacement parts are only a few of the benefits.

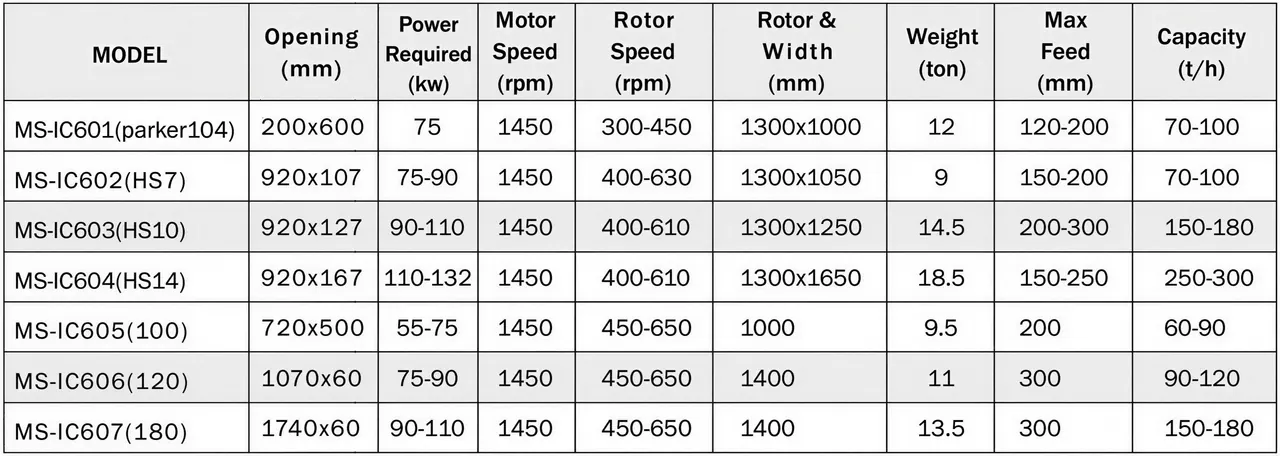

Impact crusher specification table (MS-IC series)

Impact crusher models (MS-IC series)

ModelOpening (mm)Power required (kW)Motor speed (rpm)Rotor speed (rpm)Rotor & width (mm)Weight (t)Max feed (mm)Capacity (t/h)
MS-IC601 (parker104)200x600751450300-4501300x100012120-20070-100
MS-IC602 (HS7)920x10775-901450400-6301300x10509150-20070-100
MS-IC603 (HS10)920x12790-1101450400-6101300x125014.5200-300150-180
MS-IC604 (HS14)920x167110-1321450400-6101300x165018.5150-250250-300
MS-IC605 (100)720x50055-751450450-65010009.520060-90
MS-IC606 (120)1070x6075-901450450-65014001130090-120
MS-IC607 (180)1740x6090-1101450450-650140013.5300150-180

  • MS-IC601 (parker104)

    Opening (mm)
    200x600
    Power required (kW)
    75
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    300-450
    Rotor & width (mm)
    1300x1000
    Weight (t)
    12
    Max feed (mm)
    120-200
    Capacity (t/h)
    70-100

  • MS-IC602 (HS7)

    Opening (mm)
    920x107
    Power required (kW)
    75-90
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    400-630
    Rotor & width (mm)
    1300x1050
    Weight (t)
    9
    Max feed (mm)
    150-200
    Capacity (t/h)
    70-100

  • MS-IC603 (HS10)

    Opening (mm)
    920x127
    Power required (kW)
    90-110
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    400-610
    Rotor & width (mm)
    1300x1250
    Weight (t)
    14.5
    Max feed (mm)
    200-300
    Capacity (t/h)
    150-180

  • MS-IC604 (HS14)

    Opening (mm)
    920x167
    Power required (kW)
    110-132
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    400-610
    Rotor & width (mm)
    1300x1650
    Weight (t)
    18.5
    Max feed (mm)
    150-250
    Capacity (t/h)
    250-300

  • MS-IC605 (100)

    Opening (mm)
    720x500
    Power required (kW)
    55-75
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    450-650
    Rotor & width (mm)
    1000
    Weight (t)
    9.5
    Max feed (mm)
    200
    Capacity (t/h)
    60-90

  • MS-IC606 (120)

    Opening (mm)
    1070x60
    Power required (kW)
    75-90
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    450-650
    Rotor & width (mm)
    1400
    Weight (t)
    11
    Max feed (mm)
    300
    Capacity (t/h)
    90-120

  • MS-IC607 (180)

    Opening (mm)
    1740x60
    Power required (kW)
    90-110
    Motor speed (rpm)
    1450
    Rotor speed (rpm)
    450-650
    Rotor & width (mm)
    1400
    Weight (t)
    13.5
    Max feed (mm)
    300
    Capacity (t/h)
    150-180

Read from the specification picture above.
