Jaw crusher

In crushing and processing lines, jaw crushers are typically utilized as primary crushers.
The function of a crusher is to reduce large rocks and minerals to smaller pieces.
Jaw crushers made by TFI Company have a wide range of uses in the crushing of hard materials such iron ore, copper ore, lead and zinc, quartz, feldspar, etc.
To increase productivity, TFI produces jaw crusher wear parts composed of friction-resistant alloys such manganese steel, and all of its roller bearings are licensed from reputable European manufacturers.

Jaw crushers made by TFI Company have the following characteristics:

high strength and power;
low depreciation;
a very simple lubrication system;
low accessory costs;
easy repair and maintenance;
and high production efficiency.

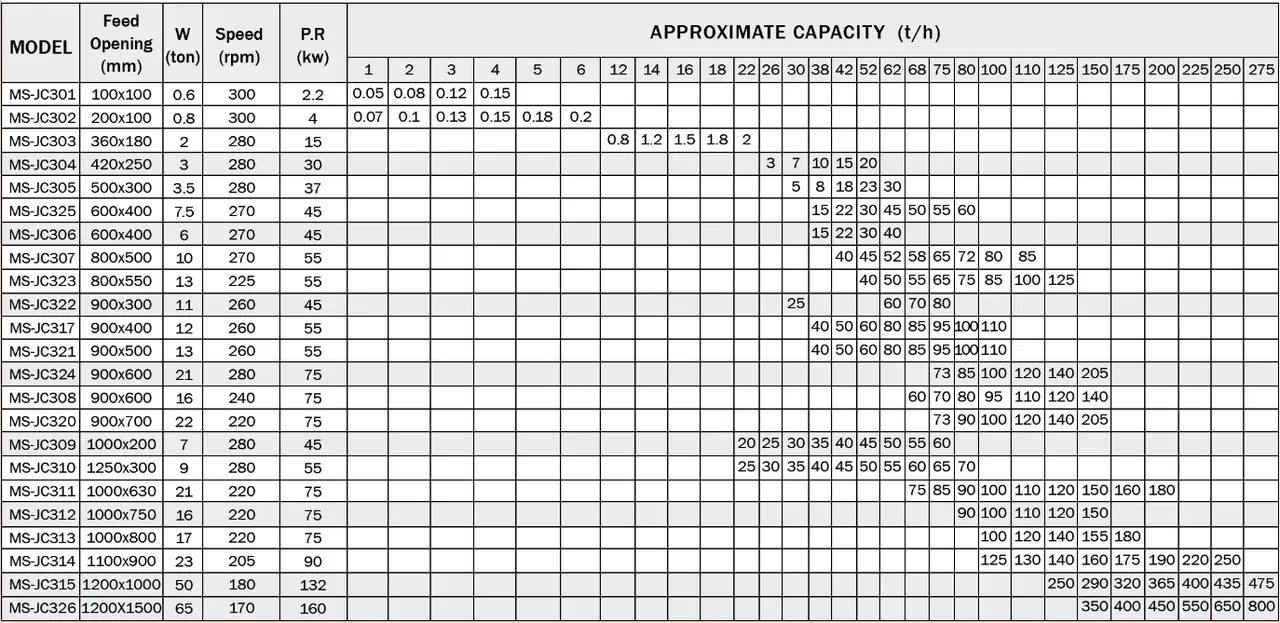

Jaw crusher specification and capacity table (MS-JC series)

Jaw crusher models (MS-JC series)

Jaw crusher models (MS-JC series)
Model	Feed opening (mm)	Weight (t)	Speed (rpm)	Power required (kW)
MS-JC301	100x100	0.6	300	2.2
MS-JC302	200x100	0.8	300	4
MS-JC303	360x180	2	280	15
MS-JC304	420x250	3	280	30
MS-JC305	500x300	3.5	280	37
MS-JC325	600x400	7.5	270	45
MS-JC306	600x400	6	270	45
MS-JC307	800x500	10	270	55
MS-JC323	800x550	13	225	55
MS-JC322	900x300	11	260	45
MS-JC317	900x400	12	260	55
MS-JC321	900x500	13	260	55
MS-JC324	900x600	21	280	75
MS-JC308	900x600	16	240	75
MS-JC320	900x700	22	220	75
MS-JC309	1000x200	7	280	45
MS-JC310	1250x300	9	280	55
MS-JC311	1000x630	21	220	75
MS-JC312	1000x750	16	220	75
MS-JC313	1000x800	17	220	75
MS-JC314	1100x900	23	205	90
MS-JC315	1200x1000	50	180	132
MS-JC326	1200x1500	65	170	160

MS-JC301
Feed opening (mm)
100x100
Weight (t)
0.6
Speed (rpm)
300
Power required (kW)
2.2
MS-JC302
Feed opening (mm)
200x100
Weight (t)
0.8
Speed (rpm)
300
Power required (kW)
4
MS-JC303
Feed opening (mm)
360x180
Weight (t)
2
Speed (rpm)
280
Power required (kW)
15
MS-JC304
Feed opening (mm)
420x250
Weight (t)
3
Speed (rpm)
280
Power required (kW)
30
MS-JC305
Feed opening (mm)
500x300
Weight (t)
3.5
Speed (rpm)
280
Power required (kW)
37
MS-JC325
Feed opening (mm)
600x400
Weight (t)
7.5
Speed (rpm)
270
Power required (kW)
45
MS-JC306
Feed opening (mm)
600x400
Weight (t)
6
Speed (rpm)
270
Power required (kW)
45
MS-JC307
Feed opening (mm)
800x500
Weight (t)
10
Speed (rpm)
270
Power required (kW)
55
MS-JC323
Feed opening (mm)
800x550
Weight (t)
13
Speed (rpm)
225
Power required (kW)
55
MS-JC322
Feed opening (mm)
900x300
Weight (t)
11
Speed (rpm)
260
Power required (kW)
45
MS-JC317
Feed opening (mm)
900x400
Weight (t)
12
Speed (rpm)
260
Power required (kW)
55
MS-JC321
Feed opening (mm)
900x500
Weight (t)
13
Speed (rpm)
260
Power required (kW)
55
MS-JC324
Feed opening (mm)
900x600
Weight (t)
21
Speed (rpm)
280
Power required (kW)
75
MS-JC308
Feed opening (mm)
900x600
Weight (t)
16
Speed (rpm)
240
Power required (kW)
75
MS-JC320
Feed opening (mm)
900x700
Weight (t)
22
Speed (rpm)
220
Power required (kW)
75
MS-JC309
Feed opening (mm)
1000x200
Weight (t)
7
Speed (rpm)
280
Power required (kW)
45
MS-JC310
Feed opening (mm)
1250x300
Weight (t)
9
Speed (rpm)
280
Power required (kW)
55
MS-JC311
Feed opening (mm)
1000x630
Weight (t)
21
Speed (rpm)
220
Power required (kW)
75
MS-JC312
Feed opening (mm)
1000x750
Weight (t)
16
Speed (rpm)
220
Power required (kW)
75
MS-JC313
Feed opening (mm)
1000x800
Weight (t)
17
Speed (rpm)
220
Power required (kW)
75
MS-JC314
Feed opening (mm)
1100x900
Weight (t)
23
Speed (rpm)
205
Power required (kW)
90
MS-JC315
Feed opening (mm)
1200x1000
Weight (t)
50
Speed (rpm)
180
Power required (kW)
132
MS-JC326
Feed opening (mm)
1200x1500
Weight (t)
65
Speed (rpm)
170
Power required (kW)
160

Read from the specification picture above.

Jaw crusher approximate capacity (t/h)

Jaw crusher approximate capacity (t/h)
Model	Approximate capacity (t/h)
MS-JC301	1 → 0.05 · 2 → 0.08 · 3 → 0.12 · 4 → 0.15
MS-JC302	1 → 0.07 · 2 → 0.1 · 3 → 0.13 · 4 → 0.15 · 5 → 0.18 · 6 → 0.2
MS-JC303	12 → 0.8 · 14 → 1.2 · 16 → 1.5 · 18 → 1.8 · 22 → 2
MS-JC304	26 → 3 · 30 → 7 · 38 → 10 · 42 → 15 · 52 → 20
MS-JC305	30 → 5 · 38 → 8 · 42 → 18 · 52 → 23 · 62 → 30
MS-JC325	38 → 15 · 42 → 22 · 52 → 30 · 62 → 45 · 68 → 50 · 75 → 55 · 80 → 60
MS-JC306	38 → 15 · 42 → 22 · 52 → 30 · 62 → 40
MS-JC307	42 → 40 · 52 → 45 · 62 → 52 · 68 → 58 · 75 → 65 · 80 → 72 · 100 → 80 · 110 → 85
MS-JC323	52 → 40 · 62 → 50 · 68 → 55 · 75 → 65 · 80 → 75 · 100 → 85 · 110 → 100 · 125 → 125
MS-JC322	30 → 25 · 62 → 60 · 68 → 70 · 75 → 80
MS-JC317	38 → 40 · 42 → 50 · 52 → 60 · 62 → 80 · 68 → 85 · 75 → 95 · 80 → 100 · 100 → 110
MS-JC321	38 → 40 · 42 → 50 · 52 → 60 · 62 → 80 · 68 → 85 · 75 → 95 · 80 → 100 · 100 → 110
MS-JC324	75 → 73 · 80 → 85 · 100 → 100 · 110 → 120 · 125 → 140 · 150 → 205
MS-JC308	68 → 60 · 75 → 70 · 80 → 80 · 100 → 95 · 110 → 110 · 125 → 120 · 150 → 140
MS-JC320	75 → 73 · 80 → 90 · 100 → 100 · 110 → 120 · 125 → 140 · 150 → 205
MS-JC309	22 → 20 · 26 → 25 · 30 → 30 · 38 → 35 · 42 → 40 · 52 → 45 · 62 → 50 · 68 → 55 · 75 → 60
MS-JC310	22 → 25 · 26 → 30 · 30 → 35 · 38 → 40 · 42 → 45 · 52 → 50 · 62 → 55 · 68 → 60 · 75 → 65 · 80 → 70
MS-JC311	68 → 75 · 75 → 85 · 80 → 90 · 100 → 100 · 110 → 110 · 125 → 120 · 150 → 150 · 175 → 160 · 200 → 180
MS-JC312	80 → 90 · 100 → 100 · 110 → 110 · 125 → 120 · 150 → 150
MS-JC313	100 → 100 · 110 → 120 · 125 → 140 · 150 → 155 · 175 → 180
MS-JC314	100 → 125 · 110 → 130 · 125 → 140 · 150 → 160 · 175 → 175 · 200 → 190 · 225 → 220 · 250 → 250
MS-JC315	125 → 250 · 150 → 290 · 175 → 320 · 200 → 365 · 225 → 400 · 250 → 435 · 275 → 475
MS-JC326	150 → 350 · 175 → 400 · 200 → 450 · 225 → 550 · 250 → 650 · 275 → 800

MS-JC301
Approximate capacity (t/h)
1 → 0.05 · 2 → 0.08 · 3 → 0.12 · 4 → 0.15
MS-JC302
Approximate capacity (t/h)
1 → 0.07 · 2 → 0.1 · 3 → 0.13 · 4 → 0.15 · 5 → 0.18 · 6 → 0.2
MS-JC303
Approximate capacity (t/h)
12 → 0.8 · 14 → 1.2 · 16 → 1.5 · 18 → 1.8 · 22 → 2
MS-JC304
Approximate capacity (t/h)
26 → 3 · 30 → 7 · 38 → 10 · 42 → 15 · 52 → 20
MS-JC305
Approximate capacity (t/h)
30 → 5 · 38 → 8 · 42 → 18 · 52 → 23 · 62 → 30
MS-JC325
Approximate capacity (t/h)
38 → 15 · 42 → 22 · 52 → 30 · 62 → 45 · 68 → 50 · 75 → 55 · 80 → 60
MS-JC306
Approximate capacity (t/h)
38 → 15 · 42 → 22 · 52 → 30 · 62 → 40
MS-JC307
Approximate capacity (t/h)
42 → 40 · 52 → 45 · 62 → 52 · 68 → 58 · 75 → 65 · 80 → 72 · 100 → 80 · 110 → 85
MS-JC323
Approximate capacity (t/h)
52 → 40 · 62 → 50 · 68 → 55 · 75 → 65 · 80 → 75 · 100 → 85 · 110 → 100 · 125 → 125
MS-JC322
Approximate capacity (t/h)
30 → 25 · 62 → 60 · 68 → 70 · 75 → 80
MS-JC317
Approximate capacity (t/h)
38 → 40 · 42 → 50 · 52 → 60 · 62 → 80 · 68 → 85 · 75 → 95 · 80 → 100 · 100 → 110
MS-JC321
Approximate capacity (t/h)
38 → 40 · 42 → 50 · 52 → 60 · 62 → 80 · 68 → 85 · 75 → 95 · 80 → 100 · 100 → 110
MS-JC324
Approximate capacity (t/h)
75 → 73 · 80 → 85 · 100 → 100 · 110 → 120 · 125 → 140 · 150 → 205
MS-JC308
Approximate capacity (t/h)
68 → 60 · 75 → 70 · 80 → 80 · 100 → 95 · 110 → 110 · 125 → 120 · 150 → 140
MS-JC320
Approximate capacity (t/h)
75 → 73 · 80 → 90 · 100 → 100 · 110 → 120 · 125 → 140 · 150 → 205
MS-JC309
Approximate capacity (t/h)
22 → 20 · 26 → 25 · 30 → 30 · 38 → 35 · 42 → 40 · 52 → 45 · 62 → 50 · 68 → 55 · 75 → 60
MS-JC310
Approximate capacity (t/h)
22 → 25 · 26 → 30 · 30 → 35 · 38 → 40 · 42 → 45 · 52 → 50 · 62 → 55 · 68 → 60 · 75 → 65 · 80 → 70
MS-JC311
Approximate capacity (t/h)
68 → 75 · 75 → 85 · 80 → 90 · 100 → 100 · 110 → 110 · 125 → 120 · 150 → 150 · 175 → 160 · 200 → 180
MS-JC312
Approximate capacity (t/h)
80 → 90 · 100 → 100 · 110 → 110 · 125 → 120 · 150 → 150
MS-JC313
Approximate capacity (t/h)
100 → 100 · 110 → 120 · 125 → 140 · 150 → 155 · 175 → 180
MS-JC314
Approximate capacity (t/h)
100 → 125 · 110 → 130 · 125 → 140 · 150 → 160 · 175 → 175 · 200 → 190 · 225 → 220 · 250 → 250
MS-JC315
Approximate capacity (t/h)
125 → 250 · 150 → 290 · 175 → 320 · 200 → 365 · 225 → 400 · 250 → 435 · 275 → 475
MS-JC326
Approximate capacity (t/h)
150 → 350 · 175 → 400 · 200 → 450 · 225 → 550 · 250 → 650 · 275 → 800

Each value is written as "column of the picture → t/h", as printed under "Approximate capacity (t/h)".
