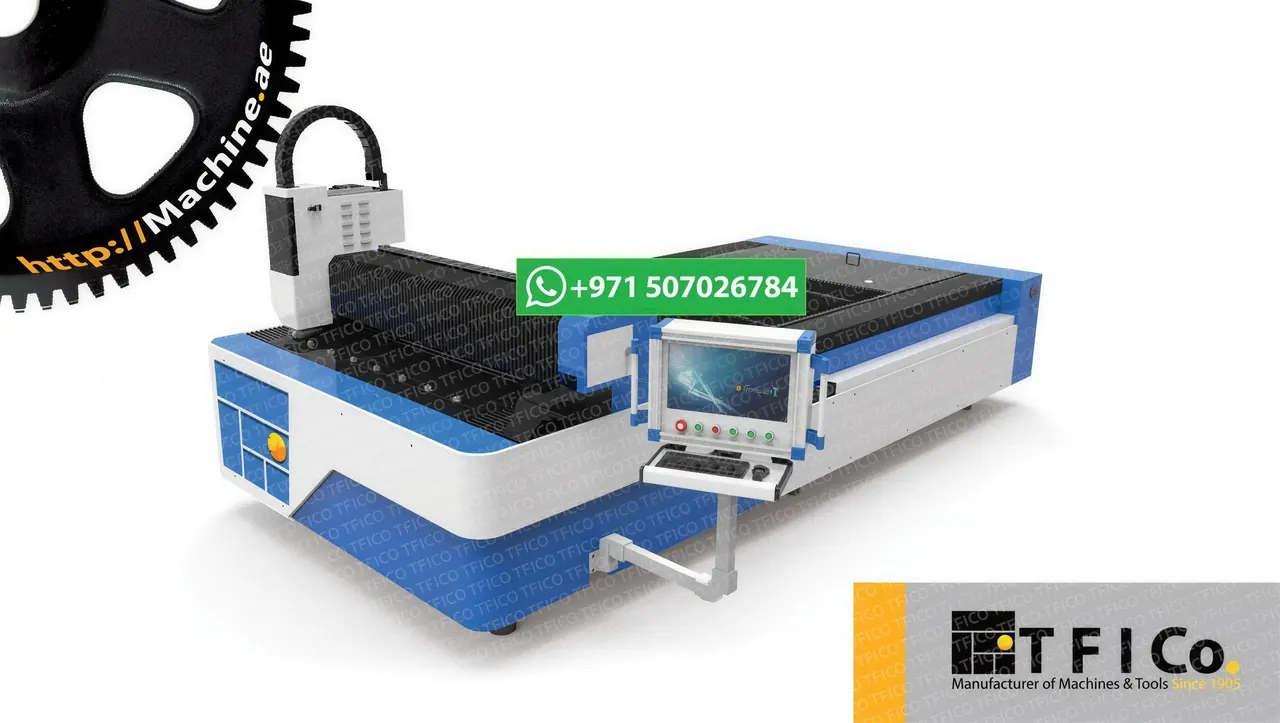

Laser Fiber IF TFI 3015X
- Laser Power 500W to 6000W
- Cutting Area 1500 x 3000mm
- Cutting Area 2000 x 6000mm
- Position Accuracy±0.03mm
Laser: RayMus/ IRJ/ xLIGHT
Drive System: Japanese High quality Brand servo motor
Cooling System: Constant temperature control water chiller
| Model | IF TFI 3015X |
Working area | 1500*3000mm |
Laser power | 3000w |
Working table | Sawtooth work table with automatic feeding system |
Drive system | Japan servo motor and drivers, Y axis double driver, total 4 sets(Y axis 2 sets, X axis 1 set, Z axis 1 set), motor power 2000w Japan Shimpo Reducer |
Controller | High version Cypcut control system |
Laser head | Raytools laser head |
Guide rail and rack | Taiwan Rail guide and Taiwan rack |
Gantry | Aluminium gantry with higher precision |
Cooling chiller | CW7300 water cooling system |
Electric parts | USA famous brand Honeywell |
Oiling lubrication | Automatic |
Smoke exhaust | Automatic |
Air pressure adjustment | Japanese SMC proportional valve, Automatic regulation of air pressure |
Bed structure | Big and thicken Steel tubes and plates welded together |
Machine heavy | More than 4000kgs |
Min line width | ≤0.1mm |
Position accuracy | ±0.03mm |
Idle movements speed | 120-127m/min |
Control software | Coreldraw, Photoshop, AutoCAD, etc |
Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
Working environment | 0-45°C, |
Operating Humidity | 5-95% |
Power Supply | 380V,3 phase,50hz |
- Model
- IF TFI 3015X
Working area
1500*3000mm
Laser power
3000w
Working table
Sawtooth work table with automatic feeding system
Drive system
Japan servo motor and drivers, Y axis double driver, total 4 sets(Y axis 2 sets, X axis 1 set, Z axis 1 set),
motor power 2000w Japan Shimpo Reducer
Controller
High version Cypcut control system
Laser head
Raytools laser head
Guide rail and rack
Taiwan Rail guide and Taiwan rack
Gantry
Aluminium gantry with higher precision
Cooling chiller
CW7300 water cooling system
Electric parts
USA famous brand Honeywell
Oiling lubrication
Automatic
Smoke exhaust
Automatic
Air pressure adjustment
Japanese SMC proportional valve, Automatic regulation of air pressure
Bed structure
Big and thicken Steel tubes and plates welded together
Machine heavy
More than 4000kgs
Min line width
≤0.1mm
Position accuracy
±0.03mm
Idle movements speed
120-127m/min
Control software
Coreldraw, Photoshop, AutoCAD, etc
Graphic format support
PLT, DXF, BMP, JPG ,AI ,ect
Working environment
0-45°C,
Operating Humidity
5-95%
Power Supply
380V,3 phase,50hz

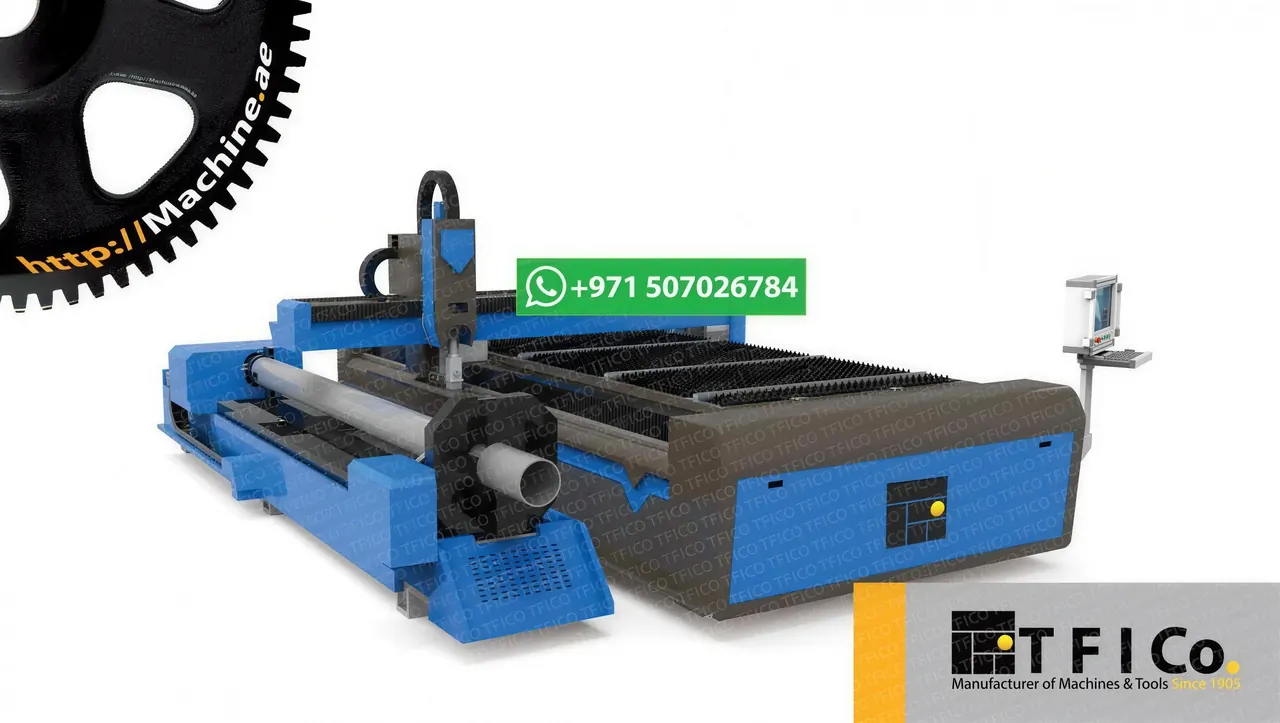

Laser Fiber Cutting Machine LF TFI 3015XR
- Laser Power 500W to 6000W
- Cutting Area 1500 x 3000mm
- Cutting Area 2000 x 6000mm
- Position Accuracy±0.03mm
- øPipe Cutting Diaø165-ø200mm
- Max Speed 100m/min

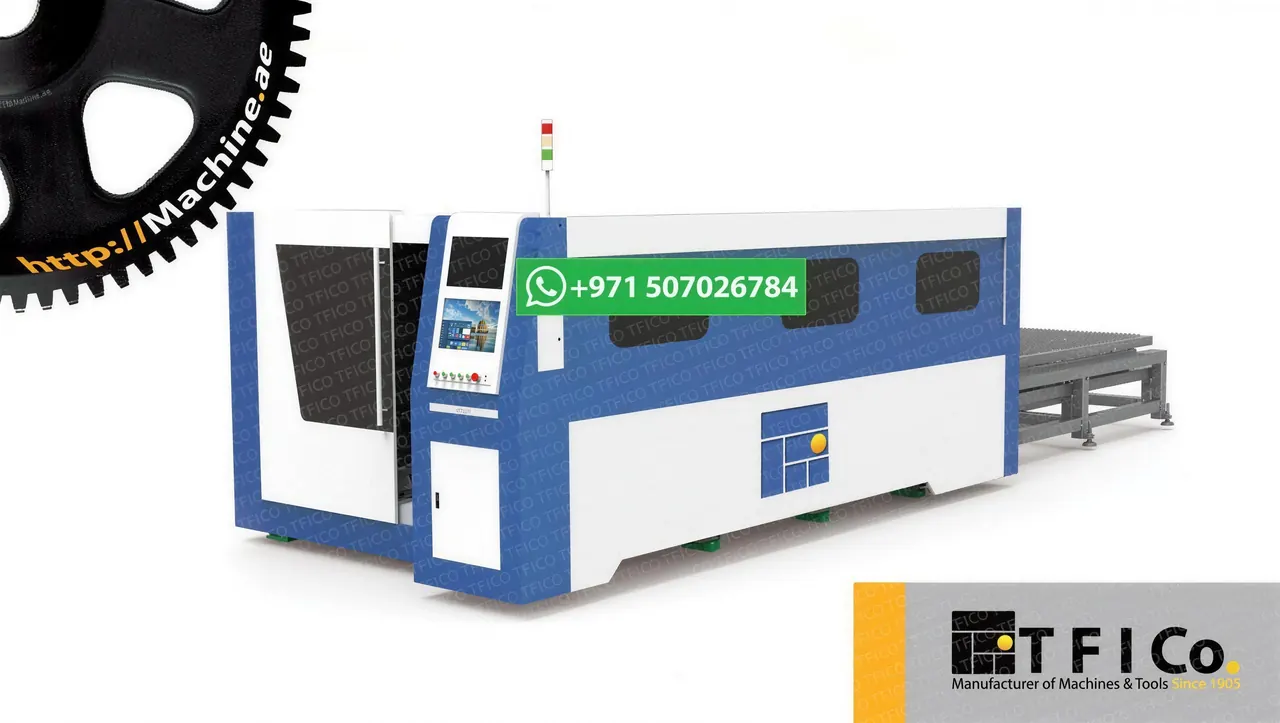

All Closed Laser Fiber Machine LF TFI 3015XH
- Laser Power 500W to 6000W
- Cutting Area 1500 x 3000mm
- Cutting Area 2000 x 6000mm
- Position Accuracy±0.03mm
- Max Speed 100m/min
- Protected Area & Changeable table
TFI Co. Fiber Laser Design.
TFI Co, Continuous studies and efforts to develop the machine advantages over competitors in the market. We care about the design and the durability of the machines in long run.
Creativity is easier with TFI Co.

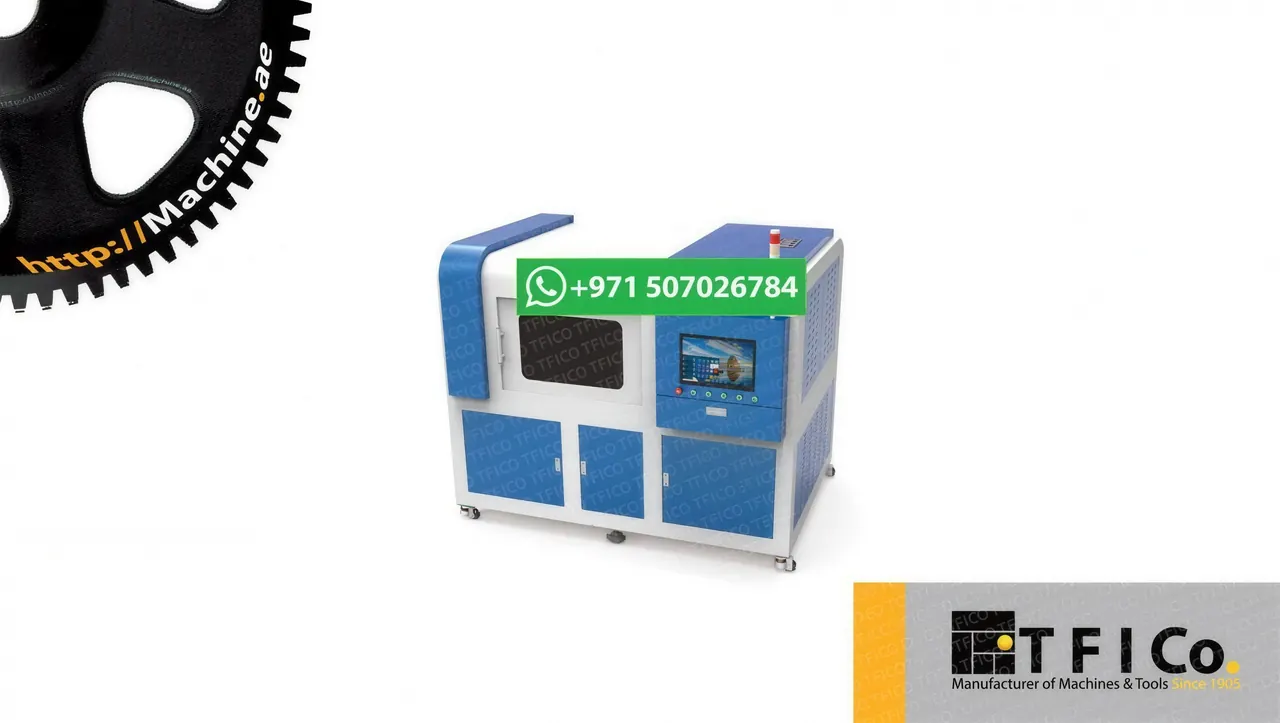

Laser Fiber Cutting Machine IF TFI 6090X
- Laser Power 500W to 6000W
- Cutting Area 600 x 4000mm
- Cutting Area 600 x 900mm
- Cutting Area 1000 x 1000mm
- Position Accuracy±0.03mm
- øPipe Cutting Diaø165-ø200mm
- Max Speed 100m/min
